Originally Published: November 2018; Revised: March 2020

Best Practice Scribes
Gareth Isaac, Director and Principal Consultant, Ortecha, a DCAM Authorized Partner
Mark McQueen, EDM Council, Senior Advisor-DCAM

Overview

Process Design Framework

The EDM Council industry standard process design utilizes a 6-level model as defined below. Practically, an industry standard can only design to Level 3. Beyond Level 3 a standard becomes organization and role specific.

• Level 0: Value Chain – Components
• Level 1: Process Groupings – Process Groups based on Component
• Level 2: Core Processes – Activities and Tasks based on Process Group
• Level 3: Business Process Flow – Processes and Sub-processes based on Functional Role

---

• Level 4: Operational Process Flow – Process Documentation based on Role
• Level 5: Detailed Process Flow – Procedures (step-by-step documentation) based on Role

Stakeholders

Data Management Practitioners (Reference: Data Management Functional Construct)

• Data Officer
• Data Governance Executive
• Executive Data Steward
• Data Architect
• Data Domain Manager
• Business Data Steward
• Technical Data Steward
• Business Process Subject Matter Expert
• Data Custodian

Scope

The driver for the design of the Level 2 Data Domain Management process was the development of a best practice tied to the identification of Critical Data Elements (CDEs). The process of prioritizing data based on criticality was determined to be contained within the Data Domain Management process. (See: Prioritizing Data Based on Criticality: Critical Data Elements (CDEs) in Context)

The following process design presents a complete Level 2 Data Domain Management process. Only four of the Level 3 processes were developed as they were the processes required to represent the activities of the process to prioritize data.

DCAM Component Alignment

The Level 2 process is presented at the Component level with alignment back to DCAM Framework Capabilities and Sub-capabilities.

The table below represents the DCAM Components that are required to execute the Data Domain Management process.

Component	Capability Requirement
7.0 Data Control Environment	● The process of data domain management is in the Data Control Environment Component. ● The process of prioritizing data based on criticality resides within the data domain management process.
3.0 Business & Data Architecture	● The process of prioritizing data based on criticality is dependent on defining requirements for data, identifying data, defining data, and profiling data.
5.0 Data Quality Management	● The process of prioritizing data based on criticality does not require the Data Quality Management Component. Data Quality Management is part of the overall Data Domain Management and will be integral to the process of managing the implications of criticality.
6.0 Data Governance	● The process of prioritizing data based on criticality leverages the Data Governance Component for approving the metadata and the criticality designation.

Level 2 1.0: Data Domain Management Process

Summary

The Data Domain Management Process is where the DCAM Framework Components of Data Governance, Data Architecture, and Data Quality are brought together to execute on a specific set of data in the Data Control Environment.

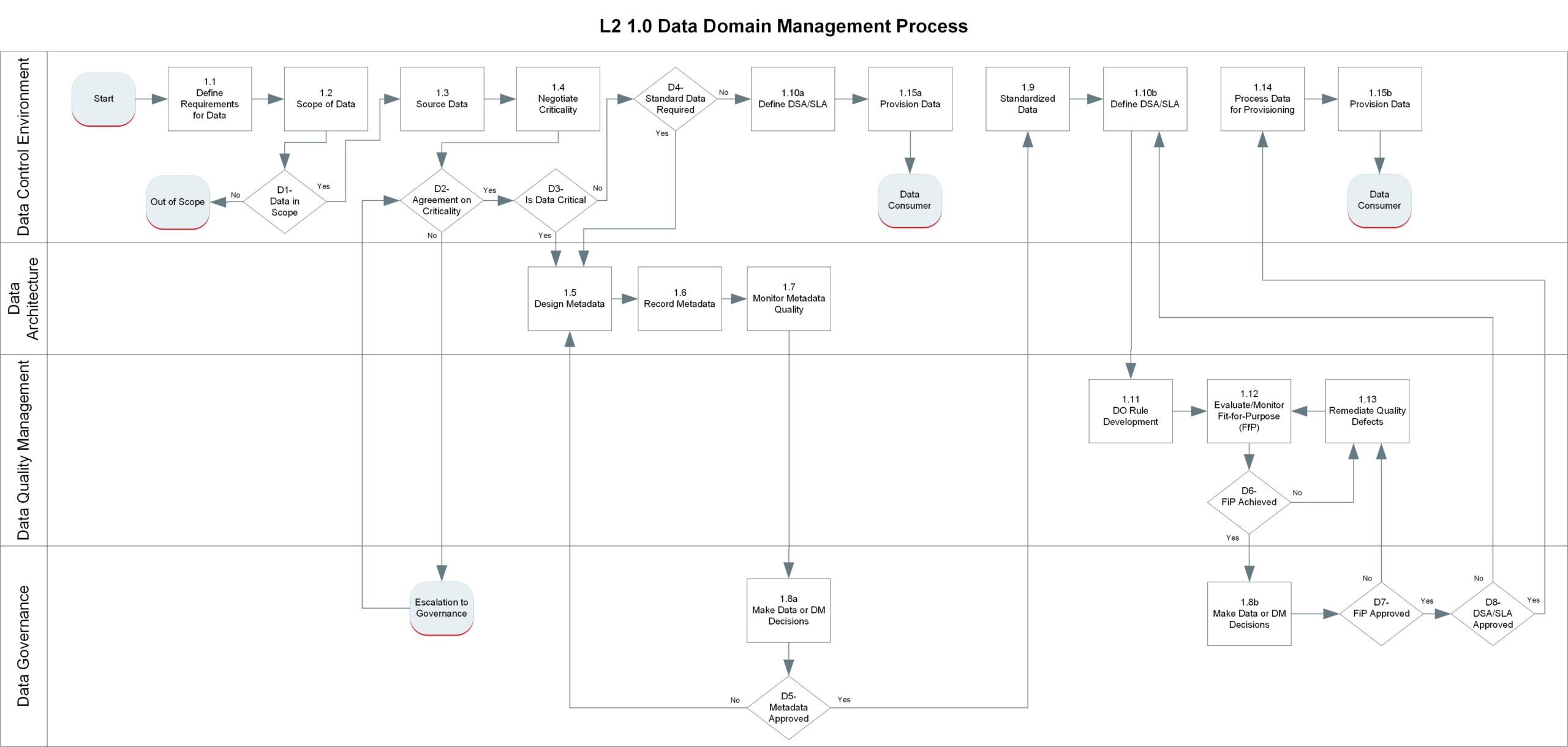

Process Flow

Process Details

The tasks outlined in orange below support the process of prioritizing data based on criticality as defined in the best practice article. However, achieving the means of prioritizing data based on criticality and managing the criticality is dependent upon the complete Data Domain Management Process.

Task ID	Functional Role	Task Description
1.1	Data Control Environment	Define Requirements for Data ● The business process consuming the data (Data Consumer) develops requirements for data as an input to their process. ● The requirements include proposed criticality with a description of material impact to business process as a result of poor quality data.
1.2	Data Control Environment	Validate data in Scope ● The business process producing the data (Data Producer) determines whether the requested data is within the scope of their domain.
D1	Data Control Environment	Data in scope? ● If yes, move to Task 1.3. ● If no, is there a referral for which domain may be in scope. Communicate to Data Consumer the scope outcome and recommendation if applicable. Process stops.
1.3	Data Control Environment	Source Data ● Go through appropriate steps to analyze the requirements, identify the data, locate the data, source the data (access data for analysis and preparation for provisioning) and record basic metadata.
1.4	Data Control Environment	Negotiate Criticality ● Data Producer reviews Data Consumer’s proposed critical designation based on analysis of material impact to business process of poor quality data. ● Agreement of Critical Elements is reached or disagreement is escalated.
D2	Data Control Environment	Agreement on Criticality? ● If yes, move to D3, is it critical ● If no, escalate criticality decision
D3	Data Control Environment	Is data critical? ● If no, move to D4, is standard data required. ● If yes, move to Task 1.5 to design metadata.
D4	Data Control Environment	Standard data required? ● Does the Data Consumer require standardized data? ● If no, move to Task 1.14a to provision non-standard data with appropriate controls on use. ● If yes, move to Task 1.5 to design metadata.
1.10a	Data Control Environment	Define Data Sharing Agreement (DSA) & Service Level Agreement (SLA) ● Establish restrictions on the use of non-standard data and parameters of provisioning.
Tool		Data Sharing Agreement Service Level Agreement
1.15a	Data Control Environment	Provision Data ● Provision the non-standard data with appropriate controls on use (proportionate to the criticality of the data).
1.5	Data Architecture	Design Metadata ● Design metadata (data about the data) that is required for the appropriate level of control on the data. ● This task works in conjunction with the parameters of the Enterprise Data & Data Management Policy and the proposed Data Sharing Agreement (DSA) which defines the required level of control on the data.
1.6	Data Architecture	Record Metadata ● Record metadata about the data in the appropriate repository(ies).
1.7	Data Architecture	Monitor Metadata Quality ● Monitor the metadata quality for accuracy, completeness, and timeliness. ● Once metadata quality is deemed adequate, submit to the appropriate data governance body for approval.
1.8a	Data Governance	Make Data or Data Management Decisions ● Data governance body reviews metadata quality report gaps to validate alignment with Enterprise Data & Data Management Policy.
D5	Data Governance	Metadata approved? ● If no, return to Task 1.5 to close identified gaps. ● If yes, move to Task 1.9 to standardize the data.
1.9	Data Control Environment	Standardize Data ● Apply logic to transform the data into the standardized form.
1.10b	Data Control Environment	Define Data Sharing Agreement (DSA) / Service Level Agreement (SLA) ● Data Producer and Data Consumer agree to all parameters in the DSA. ● Producing Technology Manager and Consuming Technology Manager in accordance with the DSA parameters agree to all parameters in the SLA.
1.11	Data Quality Management	DQ Rule Development ● Define the range of quality rules to run against each element to validate the fit-for-purpose of the data.
1.12	Data Quality Management	Evaluate / Monitor Fit-for-Purpose ● Execute the defined rules to generate defect reporting. ● Evaluate completeness of rule set.
D6	Data Quality Management	Fit-for-purpose achieved? ● If no, move to Task 1.13 to remediate quality defects. ● If yes, move to Task 1.8b to make data or data management decision.
1.13	Data Quality Management	Remediate Quality Defects ● Complete all processes to remediate quality defects.
1.8b	Data Governance	Make Data or Data Management Decisions ● Data governance body reviews metadata and data quality to approve data are fit-for-purpose and to validate alignment with Enterprise Data & Data Management Policy and DSA / SLA.
D7	Data Governance	Fit-for-purpose approved? ● If yes, move to D6 to approve DSA / SLA. ● If no, return to 1.11 to close identified gaps.
D8	Data Governance	DSA / SLA approved? ● If yes, move to 1.14 to process data for provisioning. ● If no, return to 1.10 to close identified gaps.
1.14	Data Control Environment	Process Data for Provisioning ● Run all period close activities to prepare data for provisioning.
1.15b	Data Control Environment	Provision Data ● Execute provisioning routine defined in the SLA.

Level 3 Stakeholder Functional Roles and Responsibilities

The Level 3 processes are presented at the Functional Role level with alignment back to DCAM Framework Capabilities and Sub-capabilities.

The chart below details Data Domain Management functional roles and responsibilities aligned to the Data Management Functional Construct. These functional roles apply to all of the Level 3 processes detailed in the best practice article.

Functional Role	Detailed Description
Business Data Management – Producer	A process, application or stakeholder that provisions data to one or more Data Consumers
Business Data Management – Consumer	A process, application or stakeholder that receives or uses data from a Data Producer.
Data Architecture	The function that defines and implements the data content strategy for a given subset of data.
Technology Delivery – Producer	The function that designs, builds, and runs the technical infrastructure supporting the Data Producer.
Technology Delivery – Consumer	The function that designs, builds, and runs the technical infrastructure supporting the Data Consumer.

Level 3 1.1: Define Requirements for Data

Summary

Within the Data Domain Management process the activity of defining requirements for data are completed by the Data Consumer.

Process Flow

Process Details

Task ID	Functional Role	Detailed Description
1.1.1	Business DM – Data Consumer	Identify Target Business Element (BE) ● Based on the needs of the business process define the requirements for data
1.1.2	Business DM – Data Consumer	Initiate Business Element Request Form ● Record all known requirements in the form
Tool		Business Element Request Form ● The form includes a standard set of required and optional (if known) attributes necessary to accurately communicate the request to the Data Producer
1.1.3	Business DM – Data Consumer	Review Enterprise Data Inventory ● Search the repository for a Business Element record that aligns to the defined requirements for data
D1	Business DM – Data Consumer	Is the Business Element in Inventory? ● If yes, move to 1.1.5 to complete the BE request form ● If no, move to 1.1.4 to identify suspect data domain
1.1.4	Business DM – Data Consumer	Identify Prospective Data Domain ● Based on Data Consumers understanding of the data select the most likely data domain
1.1.5	Business DM – Data Consumer	Complete Business Element Request Form ● If found in inventory, cite the BE ID and identify any requirement discrepancies in the Enterprise Data Inventory ● If not found in inventory, complete all required items and those optional items that are known
Com1	Business DM – Data Producer	Deliver Data Consumer BE Request ● Data Consumer delivers to the Data Producer of the suspect data domain

Level 3 1.2 Validate Data in Scope

Summary

Within the Data Domain Management process the activity of validating that the Data Consumer requested data are in scope is completed by the Data Producers.

Process Flow

Process Details

Task ID	Functional Role	Detailed Description
Com1	Business DM – Data Producer	Receive Data Consumer BE Request ● Data Consumer delivers to the Data Producer of the suspect data domain
1.1.2	Business DM – Data Producer	Validate Data Owner ● Using the request form information investigate whether the data are owned by the receiving Data Producer
D1	Business DM – Data Producer	Is Data Owner correct? ● If no, move to D2 to decide if the non-owned data are in scope ● If yes, move to 1.2.2 to align the DE to the requested BE
D2	Business DM – Data Producer	Is non-owned data in scope (Upstream Data Owner by DSA approves pass-through distribution non-owned data)? ● If yes, move to 1.2.2 to align the DE to the requested BE ● If no, move to Com2 to communicate data are out-of-scope
Com2	Business DM – Data Producer	Communicate Out-of-Scope ● Data Producer communicates to Data Consumer that the requested BE is not in scope to the Producer’s Domain (Data Producer should share any suspected data domains if known)
1.2.2	Business DM – Data Producer	Align DE to BE ● Based on the requirements for the BE identify all the DEs that align with the requirements
D3	Business DM – Data Producer	Is data already sourced (available in Authoritative Provisioning Point)? ● If yes, move to Process 1.4 Negotiate Criticality (non-owned data can be in scope if the upstream Data Owner allows the pass-through distribution of the data) ● If no, move to 1.2.3 to identify the DE System of Record(s) (SORs)
1.2.3	Business DM – Data Producer	Identify SOR ● Based on the DE to BE alignment identify the SOR(s)
Com3	Business DM – Data Producer	Data Sourcing Request ● Request the DE(s) to be sourced by the Technology Delivery Producer

Level 3 1.4 Negotiate Criticality

• Data Producer reviews Data Consumer’s proposed critical designation based on analysis of the material impact to the business process of poor quality data.
• Critical or Non-critical agreement is reached or disagreement is escalated.

Summary

Within the Data Domain Management process the activity of negotiating criticality is completed by the Data Producer with the Data Consumer.

Process Flow

Process Details

Task ID	Functional Role	Detailed Description
Com1		Review Data Consumer BE Request Form
1.4.1	Business DM – Data Producer	Review Criticality Analysis ● Data Producer reviews Data Consumer’s proposed critical designation based on analysis of the material impact on the business process of poor quality data.
1.4.2	Business DM – Data Producer	Discuss Criticality ● Data Producer discusses with Data Consumer rationale for material impact on the Consumer’s business process of poor quality data
D1	Business DM – Data Producer	Agreement on Criticality? ● If no, move to 1.4.3 to escalate disagreement on criticality ● If yes, move to D2 for determination of whether data is, or, is not, critical
1.4.3	Business DM – Data Producer	Escalate Disagreement ● Escalate disagreement on criticality to appropriate Governance body for resolution
1.4.5a	Data Governance	Make Data or Data Management Decision ● Appropriate Governance body reviews escalated disagreement and resolves critical designation
D2		Is Data Critical? ● If yes, move to 1.4.4 to get approval of critical designation ● If no, move to D3 to determine if standardized data are required
1.4.4	Business DM – Data Producer	Approval of Critical Designation ● The Data Producer governance body must approve criticality designation
1.4.5b	Data Governance	Make Data or Data Management Decision ● Appropriate governance body decisions approval of critical designation
D3		Critical data are Approved? ● If yes, move to 1.5 Design Metadata ● If no, move to D4 Standard Data Required
D4		Standard Data are Required (standard value is required across the data set)? ● If yes, move to 1.5 Design Metadata ● If no, move to 1.10 Define DSA/SLA

Level 3 1.10 Complete DSA/SLA

Summary

Within the Data Domain Management process the activity of completing the Data Sharing Agreement is conducted by the Business Data Management-Data Producer with the Business Data Management-Data Consumer. Similarly, completing the Service Level Agreement is conducted by Technology Delivery Producer with the Technology Delivery-Data Consumer.

Process Flow

Process Details

Task ID	Functional Role	Detailed Description
Com1		Review Data Consumer BE Request Form
1.10.1	Business DM – Data Producer	Confirm Use & Define Use Constraint ● Review the consumer defined use in the BE Request Form ● Define the use constraints on the data
1.10.2	Business DM-Data Consumer	Propose Quality Measures for Data Elements ● Based on consumer business process, define measurements for data quality
1.10.3	Business DM – Data Producer	Confirm Quality Measures ● Evaluate proposed measurements against current measurements and confirm agreed upon measures
1.10.4	Business DM – Data Producer	Propose Quality Threshold ● Evaluating current data quality and cost to enhance data quality, propose the threshold for quality
1.10.5	Business DM-Data Consumer	Confirm Quality Threshold ● Based on the cost of poor quality to the producer business process, confirm an acceptable threshold for quality
1.10.6	Business DM – Data Producer	Create DSA Document ● Create or modify existing DSA document to include all data shared between the producer and consumer data domains
1.10.7	Business DM-Data Consumer	Confirm DSA Document ● Review and confirm the completeness of the DSA document
1.10.8	Technology Delivery-Data Consumer	Propose SLA Requirements ● Based on the requirements of the consumer business process and the constraints of the technical infrastructure, define the application-to-application parameters for data consumption
1.10.9	Technology Delivery-Data Producer	Confirm SLA Terms ● Review and confirm the ability to perform according to the defined parameters
1.10.10	Technology Delivery-Data Producer	Create SLA Document ● Create or modify existing SLA document to include data elements and the parameters for consumption
1.10.11	Technology Delivery-Data Producer	Review SLA Document ● Review and confirm the completeness of the SLA document
D1	Technology Delivery-Data Producer	SLA Approved? ● If yes, move to D2 for Technology Delivery-Data Producer approval of the SLA ● If no, move to 1.10.9 to confirm the SLA terms
D2	Technology Delivery-Data Producer	SLA Approved? ● If yes, move to D3 for Business DM-Data Producer approval of the DSA and SLA ● If no, move to 1.10.9 to confirm the SLA terms
D3	Business DM-Data Producer	DSA /SLA Approved? ● If yes, move to D4 for Business DM-Data Consumer approval of the DSA and SLA ● If no, move to 1.10.1 to confirm use and define use constraints
D4	Business DM-Data Consumer	DSA /SLA Approved? ● If yes, move to 1.10.12 to obtain appropriate governance body approval of the DSA and SLA ● If no, move to 1.10.1 to confirm use and define use constraints
1.10.12	Data Governance	Make Data or Data Management Decision ● Appropriate governance body decisions approval of DSA and SLA
D4	Data Governance	DSA /SLA Approved? ● If yes, move to 1.10.13 to record documentation parameters in the metadata repository ● If no (DSA not approved), move to 1.10.1 to confirm use and define use constraints ● If no (SLA not approved), move to 1.10.9 to confirm SLA terms
1.10.13	Business DM-Data Producer	Record in Metadata Repository ● Record DSA and SLA documentation parameters in the metadata repository (critical designation, use constraints, consuming domain, quality threshold, DSA and SLA agreement IDs, etc.)

Appendix

About the Work Group

The development of the Data Domain Management process was done within the Work Group to define the process for prioritizing data based on criticality. The best practice developed by the Work Group was originally published in November 2018 and is titled: Prioritizing Data Based on Criticality: Critical Data Elements (CDEs) in Context.

The project objective was to create an agreed upon understanding of the purpose and definition of a CDE. Then, based on that purpose and definition develop a best practice process, procedures, and tools for the identification of CDEs and for managing the implications of criticality. The execution of the process, procedures and tools will be aligned with the DCAM Framework and the Data Management capabilities it defines.

Work Group Members – organization affiliation as of November 2018

Arzaga, Raymund – Scotiabank
Atkin, Mike – EDMC
Bala, Sathya – Deutsche Bank
Bersie, Bret* – US Bank
Bland, Karen* – Moody’s Corporation
Brophy, Doris – Societe Generale
Deligiannis, Greg – S&P Global Ratings
Dewsbury, Jeff – DTCC
Dimitrion, Genevey – State Street
Doyle, Martin* – DQ Global
Farenci, Susan – MUFG Union Bank
Finnen, Michael – Mitsubishi UFJ Financial Group
Fruhstuck, Mary – BNY Mellon | Pershing
Giardin, Christopher – IBM Hybrid Cloud
Gordon, Andrew – Deutsche Bank
Hawkins, Matthew* – Goldman Sachs
Isaac, Gareth* – Ortecha
Jeffries, Denise
Keslick, Rob – BMO
Klaentschi, Kathryn
Lawson, Andrew – Brickendon
Liu, Irene – PWC
McAdams, Curtis
McQueen, Mark* – EDMC / Ortecha
Nham, Annie – Macquarie Group Limited
Pandya, Hiten* – HSBC Bank
Robeen, Erica – Mastercard
Rolles, Daniel – EXL Service Holdings, Inc.

* Data Architecture Subgroup Member

About the Authors

Gareth Isaac is a Partner in Ortecha, an EDM Council DCAM Authorized Partner data consultancy. He is a professional Data practitioner who works with stakeholders – both leadership and subject matter experts – to understand the complex challenges involved with improving processes and data throughout the end to end information lifecycle. Gareth has worked with multiple GSIBs over the years to help improve their data management practices, specializing in data lineage, control frameworks and governance functions.

gareth.isaac@ortecha.com
+44 20 3239 3823

Mark McQueen is the Senior Advisor – DCAM to the EDM Council. He joined the Council in 2016 and now leads the Best Practice Program to develop Data Management industry-standard processes for executing the DCAM Framework. Mark has over 20 years with a Fortune 25 GSIB where he was the business Data Management Executive for the Wholesale Bank. In addition to Best Practice Program facilitation, he provides training and EDMC Advisory Services related to the adoption and execution of the DCAM Framework in member organizations.

Mark is a DCAM Certified Trainer, Six Sigma Black Belt Certified, and Strategic Foresight accredited – University of Houston.

Mark is a Partner in Ortecha, an EDM Council DCAM Authorized Partner data consultancy.

mmcqueen@edmcouncil.org
+1 615.308.6465

---

Revision History

Date	Author	Description
November 2018	Garreth Issac; Mark McQueen	Initial Publication
March 2020	Mark McQueen	Knowledge Portal Release; Broken into a Separate Article from Prioritizing Data Based on Criticality: CDEs in Context
